Products




Hardware version 9

MODEL A
Contact us


A high quality, automated radiation dosimeter, in a rugged rainproof aluminium enclosure. It runs on little power and doesn't need a computer. Measurements are transmitted automatically to the Internet using an Ethernet connection to your internet Router. They can be accessed on the uRADMonitor portal or in your local network, directly.
It comes with:
Power adapter, power cable, ethernet cable, instructions

Availability:
Available, ships right away.

More: Example | Datasheet | API | USB

Price: $389 USD






Kirscht, USA: "I really like 'joining the network' idea. This is better than the device, the device is obviously awesome as well though."



uRADMonitor model A uses the military grade SBM20 Geiger Tube to detect gamma and x-ray ionising radiation. It also features a digital temperature sensor.
SensorParameterMinimum valueMaximum value
Dallas DS18B20Temperature-55 °C+125 °C
SBM20 *γ,x-rays0.01μSv/h9999.99μSv/h
* Each Model A dosimeter is subjected to a final test: the tested device must be in a confidence interval of 5% in comparison to a master. This master is adjusted to a gauged reference Cs-137 emitter.
The purpose of the Model A is to generate a global image on the radioactive background level, ranging from natural sources such as soils rich in radioactive elements to man made sources mostly released in case of nuclear incidents, illegal nuclear activities or illegal transportation of nuclear materials. Being spread across the entire planet, the network of Model A detectors provides early warning and action can be taken to limit further damage. Ionizing radiation is harmful to living organisms because it can cause damage to cells that can result in multiple disorders , the most common of which is cancer. Ionizing radiation is naturally occurring from cosmic and terrestrial sources, but there are also artificial generators related to nuclear activities or x-ray devices . Worldwide global average dose is 3.01mSv [1].

[1] Radiation Health Effects, US Environmental Protection Agency
The model A is designed as a fixed monitoring station. Monitoring radiation brings certain advantages over simply using a handheld unit occasionally. First it's the capability of identifying the radiation trend, due to long term measurements, and taking action in regards to the evolution of numbers rather than not knowing how to interpret short time readings. Then with long term continuous monitoring we get a clue even on low level changes that often evade portable localized readings (unless the levels are higher). Finally having an automated system monitoring radiation 24/7 results in keeping you informed all the time, not only on occasional situations like when using a handheld for an isolated check. The data can be viewed remotely on a computer or on a mobile device. You can also access the unit in your LAN directly, by opening its DHCP assigned IP in your Internet browser. model_A_front_back
ItemParameterRatings
VoltageExternal5V - 9V
ConnectivityEthernet
MicrocontrollerAtmega328p8 bit
EnclosureRugged aluminium110x80x24 mm
TemperatureOperating Range-20°C to +65°C
Your uRADMonitor should be mounted outside, but not directly exposed to sun, to avoid overheating in warmer areas. A covered spot with some shadow in the free air is ideal. The unit has a rugged aluminium enclosure that is rainproof when mounted with the cables down. The enclosure has wall-mounting brackets, making installation easy. A distance of 1 meter (3 feet) above the ground level is recommended for more relevant measurements. Connect the uRADMonitor to the power source using the DC cable and the power adapter, and to the Internet router using the Ethernet cable. Use a longer cable if needed. The Internet router must have DHCP enabled. When powered, the uRADMonitor gets an IP automatically, via DHCP, and will show up on the map. It uses very little energy to run!



Hardware version 4

MODEL KIT1
Contact us


Intended as open source for those who want to build their own dosimeter with their own tools, this is also available pre-assembled. It measures Gamma radiation and with the integrated Ethernet connectivity will send all measurements automatically via the Internet. Add a battery and it can also be used as a portable dosimeter, showing all measurements on the LCD.
It comes with:
Power adapter, power cable, ethernet cable, instructions, Programmer

Availability:
Out of stock.

More: Example | Datasheet | API | USB

Price: $249 USD






Chris, Australia: "Thanks guys, great project."



uRADMonitor model KIT1 uses the military grade SBM20 Geiger Tube to detect hard beta, gamma and x-ray ionising radiation.
SensorParameterMinimum valueMaximum value
SBM20γ,x-rays0.01μSv/h9999.99μSv/h
HackableAdd any additional sensors
The KIT1 improves global image on the radioactive contamination, ranging from natural sources such as soils rich in radioactive elements to man made sources mostly released in case of nuclear incidents, illegal nuclear activities or illegal transportation of nuclear materials. Being spread across the entire planet, the network of uRADMonitor detectors provides early warning and action can be taken to limit further damage. As an open source design it can be hacked and modded to add more sensors in a convenient way, using a proven robust platform. Ionizing radiation is harmful to living organisms because it can cause damage to cells that can result in multiple disorders , the most common of which is cancer. Ionizing radiation is naturally occurring from cosmic and terrestrial sources, but there are also artificial generators related to nuclear activities or x-ray devices . Worldwide global average dose is 3.01mSv [1].

[1] Radiation Health Effects, US Environmental Protection Agency
The KIT1 can be used both as a mobile detector and as a fixed monitoring station. It is released as Open Source, with complete specs publicly available. You can purchase it as an assembled unit, usable out of the box, or as a solderable kit, and then you'll need to assemble it first. This is a versatile product: you can use it as a fixed monitoring station, then simply hook up a battery and take it with you as a mobile dosimeter. The data can be viewed on the LCD or remotely on a computer or on a mobile device. You can also access the unit in your LAN directly, by opening its DHCP assigned IP in your Internet browser. model_KIT1
ItemParameterRatings
VoltageExternal5V - 9V
Battery3V (2xAA)
ConnectivityEthernet
MicrocontrollerAtmega3288 bit
Size110x60x12 mm
If you intend to use the KIT1 as a monitoring station, find a protective enclosure that is rainproof and a covered spot with some shadow in the free air. A distance of 1 meter (3 feet) above the ground level is recommended for more relevant measurements. Connect the uRADMonitor to the power source using the DC cable and the power adapter, and to the Internet router using the Ethernet cable. Use a longer cable if needed. The Internet router must have DHCP enabled. When powered, the uRADMonitor gets an IP automatically, via DHCP, and will show up on the map. The LCD will dim after a certain time, to conserve power.



Hardware version 5

MODEL D
Contact us


This is a compact portable environmental dosimeter, capable of measuring Alpha, Beta and Gamma radiation but also air quality as PM2.5 and Volatile organic compounds. It is a modern design, featuring a large colour LCD screen with touchscreen, a GPS receiver to tag all measurements and a SDCard slot. It comes with WLAN connectivity to send all data online.
It comes with:
Power adapter, Micro USB cable, instructions, 8GB Kingston SDCard

Availability:
Out of stock.

More: Example | Datasheet | API | USB

Price: $749 USD






Eirini, Greece: "I recently read about your uradmonitor project at hackaday.io. Designing a pcb from scratch, mounting everything manually and especially SMDs takes quite some skill so thumbs up for your work."



uRADMonitor model D uses the BME680 from Bosch to measure air temperature, barometric pressure, humidity and volatile organic compounds, or VOC. A Sharp photoelectric sensor is used to detect the Particulate Matter PM2.5 concentration in air. A high quality LND712 Geiger Tube Made in the USA allows this dosimeter to detect alpha, beta, gamma and x-ray ionising radiation.
SensorParameterMinimum valueMaximum value
Bosch BME680Temperature-40 °C+85 °C
Pressure300 hPa1100 hPa
Humidity0% RH100% RH
VOC0 mg/m³100 mg/m³ reducers
10 mg/m³ oxidizers
Sharp GP2Y1010AU0FPM2.50 μg/m³ 800 μg/m³
LND LND712 *α,β,γ,x-rays0.005μSv/h5000.00μSv/h
* Each Model D dosimeter is subjected to a final test: the tested device must be in a confidence interval of 5% in comparison to a master. This master is adjusted to a gauged reference Cs-137 emitter.
The purpose of the model D detector and that of the entire uRADMonitor network is to monitor chemical and physical factors that can have a negative impact on our health or on the environment. Using its advanced sensors, the model D monitors against the following potentially hazardous parameters: air_pollution_uradmonitor_d
Picture: Air pollution can shorten our lifespan, this is why we need uRADMonitor
VOC or volatile organic compounds, are a class of substances that evaporate at room temperature. Being different substances, may be responsible for a broad category of disorders, including respiratory problems, allergic or weakening immunity in children. Some VOC 's are responsible for the formation of smog, irritation of eyes, nose and throat, headaches and concentration problems. In extreme circumstances, more severe complications can occur, such as damage to liver, kidney and central nervous system or cancer [1].
Ionizing radiation is harmful to living organisms because it can cause damage to cells that can result in multiple disorders , the most common of which is cancer. Ionizing radiation is naturally occurring from cosmic and terrestrial sources, but there are also artificial generators related to nuclear activities or x-ray devices . Worldwide global average dose is 3.01mSv [2].
Particulate matter PM2.5 refers to small particles with a diameter of up to 2.5 microns. These particles can penetrate deep into the lungs , causing allergies, respiratory and cardiovascular diseases [3].

[1] Volatile Organic Compounds' Impact on Indoor Air Quality, US Environmental Protection Agency
[2] Radiation Health Effects, US Environmental Protection Agency
[3] Health and Environmental Effects of Particulate Matter (PM), US Environmental Protection Agency
These are mobile units powered by a high capacity Lithium Ion rechargeable battery, with a GPS receiver for location mapping and Wifi connectivity, but also with a SDCard slot to store all readings when WLAN is not available. This not only addresses radioactivity in a similar way to existing top-notch dosimeters, but it also measures the air pollution, contributing with valuable data to the uRADMonitor network. The model D also features an Alarm built in and has a touchscreen to provide visual and audible indications, keeping you informed all the time. Using the uRADMonitor backend infrastructure and model D's wireless data sharing capabilities, the global readings provide useful data on pollution, its geographical distribution, and evolution in time. model_D_front_back
Picture: Complex uRADMonitor motherboard front and bottom view
ModuleParameterRatings
BatteryLithium Ion1500mAh
GPSChannels50
First fix27s / 1s
Accuracy2m
LCDSize2.4"
Touchscreenresistive-
WifiProtocols802.11b/g/n
SDCardTypeMicroSD SDHC
MicrocontrollerAtmega25618 bit
Real Time ClockGPS synced-
EnclosureRugged aluminium110x70x24 mm
While intended exclusively as a portable dosimeter, there's nothing against using the model D as a fixed monitoring station. You will only need to keep the power cable inserted and make sure the WLAN is connected. If left outdoors, make sure the unit is protected from the elements. The LCD dims after a certain amount of time to conserve power.
Product Manual
Technical Datasheet
API and Server Specs
Product Limited Warranty terms
uRADMonitor with WIFI Configuration manual

USB Driver
In their recent versions, Windows, Linux and MacOS come with built in drivers for your uRADMonitor unit. Use the following resources only if the built in drivers do not work for you.
CH340g driver for Windows
CH340g driver for Linux
CH340g driver for MacOS



Hardware version 9

MODEL A3
Contact us


Plug and play advanced air quality monitoring station, enclosed in an aluminium body for rugged design, it has sensors for Particulate Matter (PM2.5, PM1, PM10), Ozone, Formaldehyde, Carbon Dioxide, Volatile Organic Compounds (VOC), temperature, barometric pressure, air humidity and noise. The A3 comes in 4 variants with connectivity options: Ethernet, Wifi, GSM (with a data sim card) and LoraWAN. This monitor is lab tested for data accuracy.
It comes with:
Power adapter, antenna, instructions

Availability:
Available, limited stock.

More: Example | Datasheet | API | USB

Price: $589 USD






Manuel, Germany: "Please keep that project going, it is a great idea and all people may benefit from it :)"



uRADMonitor model A3 uses a MEMs sensor to measure air temperature and humidity. A MOX VOC sensor measures volatile organic compounds. A high quality laser scattering sensor is used to detect the Particulate Matter PM2.5 concentration in air. There are two electrochemical sensors, one for formaldehyde sensor and another one for ozone and a nondispersive infrared sensor for CO2. A built in fan assures an active air flow stream across the sensing elements. There is also a noise level sensor.
SensorParameterMinimum valueMaximum value
MEMsTemperature-40 °C+85 °C
Humidity0% RH100% RH
Laser scatteringPM1.00 μg/m³ 1000 μg/m³
PM2.50 μg/m³ 1000 μg/m³
PM100 μg/m³ 1000 μg/m³
ElectrochemicalFormaldehyde0 ppm 5 ppm
ElectrochemicalOzone0 ppm 10 ppm
NDIRCarbon Dioxide400 ppm 5000 ppm
MOXVOC10 ppm1000 ppm *
Analogue sound sensorNoise level30dB130dB
* VOC concentration interval is estimated for alcohol.

To see complete specs see the technical datasheet.
Many of the pollutants measured by Model A3 can have a negative impact on our health, ranging from simple allergies to various cancers. Therefore the data gathered by this device is valuable for our understanding on the quality of our environment. health_effects_banner_a3
Picture: uRADMonitor fights pollution to improve our health
VOC or volatile organic compounds are a class of substances that evaporate at room temperature. Being different substances may be responsible for a broad category of disorders, including respiratory problems, allergic or weakening immunity in children. Some VOC ‘s are responsible for the formation of smog, irritation of eyes, nose and throat, headaches and concentration problems. In extreme circumstances, more severe complications can occur, such as damage to liver, kidney and central nervous system or cancer [1]
Particulate matter PM2.5 refers to small particles with a diameter of up to 2.5 microns. These particles can penetrate deep into the lungs , causing allergies, respiratory and cardiovascular diseases [2]
Formaldehyde is a toxic colorless gas with a pungent smell, that results from the burning of carbon based materials. It can be found in forest fires, in automobile exhaust and cigarette smoke. It is an allergenic and a known carcinogenic compound that can cause serious health effects, depending on concentration and exposure. Even in tiny quantities just above 0.1ppm it can irritate the eyes and nose, and can worsen asthma symptoms [3]
Carbon dioxide is a gas heavier than air. In small quantities of up to 5000ppm (0.5% ) can cause headaches, lethargy, slowing of intellectual ability, irritability, sleep disturbance. In larger quantities can cause dizziness, loss of sight, hearing or knowledge. The fresh air contains between 360ppm and 410 ppm of CO2 [4]
Ozone can cause the muscles in the airways to constrict, trapping air in the alveoli. This leads to wheezing and shortness of breath. Long-term exposure to ozone is linked to aggravation of asthma, and is likely to be one of many causes of asthma development. Long-term exposures to higher concentrations of ozone may also be linked to permanent lung damage, such as abnormal lung development in children. [5]
Noise Induced Hearing Loss (NIHL) is the most common and often discussed health effect, but research has shown that exposure to constant or high levels of noise can cause countless adverse health affects. [6]
[1] Volatile Organic Compounds’ Impact on Indoor Air Quality, US Environmental Protection Agency
[2] Health and Environmental Effects of Particulate Matter (PM), US Environmental Protection Agency
[3] ToxFAQs™ for Formaldehyde, Agency for Toxic Substances and Disease Registry
[4] Effects of low-level inhalation exposure to carbon dioxide in indoor environments
[5] Health Effects of Ozone Pollution, US Environmental Protection Agency
[6] Noise Pollution, US Environmental Protection Agency
The model A3 is designed as an automated, fixed, Air Quality monitoring station. The A3 is IOT and it comes in 4 variants, with the same sensors but offering different connectivity options: Ethernet, Wifi, GSM/GPRS and LoraWAN. It takes any voltage in the 6V - 28V interval and uses less than 1 Watt of power to run. A built in speaker can provide audible notifications, configurable via the dashboard. This unit doesn't have a screen, it works as a monitor and the data can be viewed remotely on a computer or on a mobile device.
Picture: uRADMonitor A3 motherboard front and bottom view
ItemParameterRatings
VoltageExternal6V - 28V
Connectivity4 optionsEthernet, WiFi, GSM, LoRaWAN
MicrocontrollerAtmega1284p8 bit
EnclosureRugged aluminium110x80x24 mm
Your uRADMonitor unit can be mounted both indoors and outdoors, but not directly exposed to sun, to avoid overheating in warmer areas. A covered spot with some shadow if installed in the free air, is ideal. The unit has a rugged aluminium enclosure that is not rainproof due to the air vents. Make sure that nothing is blocking the air vents. The enclosure has wall-mounting brackets, making installation easy.
If you have a radio variant with an antenna, connect the antenna first. If it is the wired variant, connect it to the Internet Router using the Ethernet cable. Connect the uRADMonitor to the power source using a DC adapter with voltage between 6V and 28V or via the USB port with a 5V USB adapter.
The Ethernet variant
Make sure the device is connected to the Internet router using the Ethernet cable. Use a longer cable if needed. The Internet router must have DHCP enabled. When powered, the uRADMonitor gets an IP automatically, via DHCP, and will show up on the map automatically.
The WIFI variant
Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your A3 unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message, and three consecutive beeps will indicated the problem. Alternatively you can change the configuration using the USB data port. See the USB manual.
The LORAWAN variant
Your device must be pre-provisioned with the LoraWAN Gateway and network server details. Alternativelly you can change the configuration using the USB data port. See the USB manual.
The GSM variant
A data SIM card must be inserted in your A3 unit before it can connect over Internet.

Starting with hardware version HW106, the LoRaWAN, Wifi and GSM settings can be customized via the USB connection. Consult your product manual for complete details.



Hardware version 7

MODEL INDUSTRIAL
Contact us


An automated, fixed monitoring station that tracks a total of 11 important air quality parameters including Particulate Matter, Carbon Monoxide, Ozone, Sulphur Dioxide, Nitrogen Dioxide and more for the INDUSTRIAL sector. It comes in a rugged aluminum enclosure with wall mounting support. The data is exported to the uRADMonitor network with Wifi or LORAWAN, and can be accessed in real time using the cloud API interface or directly via the local network.
It comes with:
Power adapter, antenna, instructions

Availability:
Available, ships right away.

More: Example | Datasheet | API | USB

Price: $1749 USD






Andrei A., Romania: The most accurate and widespread air quality monitoring network. I also own several of their sensors and all work flawlessly.



uRADMonitor model INDUSTRIAL uses a high quality laser scattering sensor to measure Particulate Matter PM1, PM2.5 and PM10 concentrations in air. Four additional electrochemical sensors measure Carbon Monoxide, Sulphur Dioxide, Nitrogen Dioxide and Ozone by default, interchangeable to support additional gases resulting from production or industrial processes. A MOX VOC sensor measures volatile organic compounds. A built in fan assures an active air flow stream across the sensing elements. The MEMs sensor reads ambient temperature and humidity, and a noise sensor measures the noise level. This product is intended for the industrial sector where medium and high gas concentrations need to be observed.
SensorParameterMinimum valueMaximum value
MEMsTemperature-40 °C+85 °C
Humidity0% RH100% RH
Laser scatteringPM1.00 μg/m³ 1000 μg/m³
PM2.50 μg/m³ 1000 μg/m³
PM100 μg/m³ 1000 μg/m³
MOXVOC10 ppm1000 ppm *
Analogue sound sensorNoise level30dB130dB
ElectrochemicalOzone0 ppm 10 ppm
ElectrochemicalNitrogen Dioxide0 ppm 10 ppm
ElectrochemicalSulphur Dioxide0 ppm 20 ppm
ElectrochemicalCarbon Monoxide0 ppm 200 ppm
By the nature of the technology used, any sensor can potentially fail to meet specification without warning. We make every effort to ensure reliability of all sensors but where life safety is a performance requirement of the product and, where practical, we recommend that all gas sensors and instruments using sensors are checked for response to gas before use. We accept no liability for any consequential losses, injury or damage resulting from the use of the uRADMonitor products. Customers should test the sensors under their own conditions to ensure that the sensors are suitable for their own requirements and in accordance with the plans and circumstances of the specified project and any standards / regulations pertaining to the country in which the sensors will be utilized.

Custom gases detection options

* The unit comes with Ozone, Nitrogen Dioxide, Sulphur Dioxide and Carbon Monoxide calibrated electrochemical sensors built in. These 4 sensors, can be replaced with any combination of sensors for the below gases and ranges. In some situations we can offer custom detection intervals (eg. 0-1000ppm for CO, etc):
SymbolGasDetection interval
COCarbon monoxide0 - 200ppm
O2Oxigen0 - 25%VOL
NH3Ammonia gas0 - 100ppm
H2SHydrogen sulfide0 - 100ppm
SO2Sulfur dioxide0 - 20ppm
NO2Nitrogen dioxide0 - 10ppm
Cl2Chlorine gas0 - 20ppm
O3Ozone0 - 10ppm
H2Hydrogen gas0 - 1000ppm
HFHydrogen fluoride0 - 10ppm
C2H4Ethylene0 - 100ppm
CH2OFormaldehyde0 - 10ppm
ETOEthylene oxide0 - 20ppm
HClHydrogen chloride0 - 20ppm
C6H6Benzene0 - 100ppm
C7H8Toluene0 - 500ppm
C2H3ClVinyl chloride0 - 20ppm
C2H6SMethyl Sulfide0 - 100ppm
C2H6S2Dimethyl Disulfide0 - 100ppm
AsH3Arsine0 - 3ppm
C3H9NTrimethylamine0 - 100ppm
C8H8Styrene0 - 100ppm
CH4SMethanethiol0 - 100ppm
CS2Carbon Disulfide0 - 100ppm
PH3Phosphine0 - 10ppm
HCNHydrogen cyanide0 - 100ppm
Notes:
  • Only sensors marked in green are currently available.
  • All sensors are individually tested and calibrated.
  • Air pollution is the single largest environmental cause of premature death in urban Europe and transport is the main source. The 2008 Air Quality Directive, now under review, obliges member states to cut exposure to fine particulate matter by an average of 20% by 2020, based on 2010 levels.
    The National Emissions Ceiling Directive caps some emissions including particulate matter (PM) and nitrogen dioxide (NOx) at national level. A revised version of the directive is as of 2016 under scrutiny by the Council of Ministers and European Parliament. Across the EU in 2013, nitrogen dioxide (NO2), which is mostly produced by traffic, caused 68,000 premature deaths. The Dieselgate scandal exposed how Volkswagen had gamed NO2 emissions tests.
    Ozone (O3) killed 16,000 and small particulate matter (PM2.5) caused 436,000 deaths in the same year. PM2.5 particles, microscopic specks of dust and soot caused by burning fossil fuels, can enter the lungs and bloodstream.
    health_effects_banner_a3 Air pollution has different particulate matter (PM) components – smoke, dirt and dust form coarse particles known as PM10 and metals and toxic exhaust from smelting, vehicle exhaust, power plants and refuse burning forming fine particles called PM2.5.
    uRADMonitor INDUSTRIAL is intended for the industrial sector where medium and high gas concentrations need to be observed.
    The model INDUSTRIAL is designed as a fixed monitoring station. It comes in 2 variants, with the same sensors but offering different connectivity options: Wifi and LoraWAN. It takes any voltage in the 6V - 24V interval and uses less than 1 Watt of power to run. It can be powered using a small solar panel making it the perfect remote surveillance monitor. This unit doesn't have a screen, it works as a monitor and the data can be viewed remotely on a computer or on a mobile device.
    Picture: uRADMonitor INDUSTRIAL motherboard front and bottom view
    ItemParameterRatings
    VoltageExternal6V - 24V
    Connectivity4 optionsWiFi, LoRaWAN, USB
    MicrocontrollerAtmega1284p8 bit
    Your uRADMonitor unit can be mounted both indoors and outdoors, but not directly exposed to sun, to avoid overheating in warmer areas. A covered spot with some shadow if installed in the free air, is ideal. The unit has a rugged aluminium enclosure that is not rainproof due to the air vents. Make sure that nothing is blocking the air vents. The enclosure has wall-mounting brackets, making installation easy.
    If you have a radio variant with an antenna, connect the antenna first. Next, connect the uRADMonitor to the power source using a DC adapter with voltage between 6V and 24V. Connect the uRADMonitor to the power source using a DC adapter with voltage between 6V and 24V or via the USB port with a 5V USB adapter.
    The WIFI variant
    Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message, and three consecutive beeps will indicated the problem. Alternatively you can change the configuration using the USB data port. See the USB manual.
    The LORAWAN variant
    Your device must be pre-provisioned with the LoraWAN Gateway and network server details. Alternativelly you can change the configuration using the USB data port. See the USB manual.

    The device comes with an USB port, so the configuration settings can be customized via the USB connection. Consult your product manual for complete details.
    Quick Start
    Technical Datasheet
    USB Serial Commands Manual
    LoRaWAN Data Server Callback manual
    Product Limited Warranty terms
    uRADMonitor with WIFI Configuration manual

    Data access:
    Terms of Service
    API Terms of Service
    API and Server Specs
    Direct Data access
    Payload Structure (FW78)

    USB Driver
    In their recent versions, Windows, Linux and MacOS come with built in drivers for your uRADMonitor unit. Use the following resources only if the built in drivers do not work for you.
    USB Driver for Windows
    USB Driver for Linux
    USB Driver for MacOS

    RO:
    Fisa tehnica



    Hardware version 5

    SMOGGIE-PM
    Contact us


    This is an ultra-low cost automated air quality monitor with a Stevenson rain proof enclosure and a simple mount system to make installation easy. It features a high quality laser scatering Particulate Matter sensor for PM1, PM2.5 and PM10 and an additional sensor for temperature and humidity. It connects to the internet via Wifi and can be powered by a standard 5V micro-usb cable. Readings are accessed via the uRADMonitor API or decentralized via your local network. This monitor is lab tested for data accuracy.
    It comes with:
    Power adapter, 1m power cable, instructions

    Availability:
    Available, ships right away.

    More: Example | Datasheet | API | USB

    Price: $199 USD






    Andy, USA: "Many thanks for such great products."



    SMOGGIE is an automated, fixed, Air Quality monitoring station. It has Wifi connectivity to send the air quality measurements to the uRADMonitor Cloud in real time. It needs 5V to run, powered by a standard micro-USB cable. This unit doesn't have a screen, it works as a monitor and the data can be viewed remotely on a computer or on a mobile device.
    SensorParameterMinimum valueMaximum value
    MEMsTemperature-40 °C+85 °C
    Humidity0% RH100% RH
    Laser scatteringPM1.00 μg/m³ 1000 μg/m³
    PM2.50 μg/m³ 1000 μg/m³
    PM100 μg/m³ 1000 μg/m³
    To see complete specs see the technical datasheet.
    Many of the pollutants measured by SMOGGIE can have a negative impact on our health, ranging from simple allergies to various cancers. Therefore the data gathered by this device is valuable for our understanding on the quality of our environment. health_effects_banner_a3
    Picture: uRADMonitor fights pollution to improve our health
    Particulate matter PM2.5 refers to small particles with a diameter of up to 2.5 microns. These particles can penetrate deep into the lungs , causing allergies, respiratory and cardiovascular diseases [1]
    [1] Volatile Organic Compounds’ Impact on Indoor Air Quality, US Environmental Protection Agency
    SMOGGIE is designed as an automated, fixed, Air Quality monitoring station. SMOGGIE is IOT and so it comes with built-in Wifi connectivity. It needs 5V to run, supplied via a standard micro-USB cable. The units can be managed via the dashboard. The data can be viewed remotely on a computer or on a mobile device.
    Picture: uRADMonitor SMOGGIE connected via micro USB cable
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent80mA (max 120mA with fan running)
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    EnclosureRainproof plastic42x43x27 mm
    Your uRADMonitor unit can be mounted both indoors and outdoors . The enclosure is rainproof, so it doesn't need additional protection when installed outdoors, just avoid direct sun exposure to avoid false temperature readings. You can fix it to a wall using only two screws. The sensor openings and cable connector must face down for open air access. Make sure that nothing is blocking the air vents. There's a small built-in fan for active airflow.
    Picture: fixing Smoggie using two screws
    To install the unit, use two M2 / L=3cm screws that can be inserted via the two holes at the bottom. The distance between the centers of the two holes is 58mm (2.28346in)
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your SMOGGIE unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your SMOGGIE via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.
    Quick Start
    Technical Datasheet
    USB Serial Commands Manual
    Product Limited Warranty terms
    uRADMonitor with WIFI Configuration manual
    Open source on Github

    Data access:
    Terms of Service
    API Terms of Service
    API and Server Specs
    Direct Data access

    Accuracy lab tests and certifications
    AQMD AQ-SPEC Performance test report

    USB Driver
    In their recent versions, Windows, Linux and MacOS come with built in drivers for your uRADMonitor unit. Use the following resources only if the built in drivers do not work for you.
    USB Driver for Windows
    USB Driver for Linux
    USB Driver for MacOS

    RO:
    Fisa tehnica
    RO: Ghid rapid de utilizare
    RO: conditii generale de utilizare



    Hardware version 5

    SMOGGIE-CO2
    Contact us


    This is a compact, automated Carbon Dioxide monitor. It detects CO2 levels in your home via a high quality non dispersive infrared sensor. Carbon dioxide at levels that are unusually high indoors may cause occupants to grow drowsy, to get headaches, or to function at lower activity levels. There is an additional sensor for temperature and humidity. It connects to the internet via Wifi and can be powered by a standard 5V micro-usb cable. It provides real time 24/7 CO2 monitoring that can help you improve your indoor air quality.
    It comes with:
    Power adapter, 1m power cable, instructions

    Availability:
    Available, ships right away.

    More: Example | Datasheet | API | USB

    Price: $199 USD






    Martin, UK: "Congratulations on an excellent idea and brilliant implementation!"



    SMOGGIE-CO2 is an automated, fixed, CO2 monitoring device. It has Wifi connectivity to report the air quality measurements in real time. Runs on 5V, powered by a standard micro-USB cable. It shows indications via coloured RGB LED and the data history can be viewed remotely on a computer or on a mobile device.
    SensorParameterMinimum valueMaximum value
    MEMsTemperature-40 °C+85 °C
    Humidity0% RH100% RH
    NDIR CO2 SensorCO2400 ppm 5000 ppm
    To see complete specs see the technical datasheet.
    Carbon dioxide is a gas heavier than air. In small quantities of up to 5000ppm (0.5% ) can cause headaches, lethargy, slowing of intellectual ability, irritability, sleep disturbance. In larger quantities can cause dizziness, loss of sight, hearing or knowledge. The fresh air contains between 360ppm and 410 ppm of CO2 [1]
    Carbon Dioxide is a contributing factor to the Sick building syndrome (SBS), a medical condition where people in a building suffer from symptoms of illness or feel unwell for no apparent reason. The symptoms tend to increase in severity with the time people spend in the building, and improve over time or even disappear when people are away from the building. The main identifying observation is an increased incidence of complaints of symptoms such as headache, eye, nose, and throat irritation, fatigue, and dizziness and nausea. These symptoms appear to be linked to time spent in a building, though no specific illness or cause can be identified. A 1984 World Health Organization (WHO) report suggested up to 30% of new and remodeled buildings worldwide may be subject of complaints related to poor indoor air quality.

    In homes and offices:
    A 100 ppm increase in indoor CO2 concentration was significantly associated with headache (..). Office workers exposed to indoor CO2 concentrations higher than 800 ppm reported a significant increase in eye irritation and upper respiratory symptoms . A 100 ppm increase in dCO2 in the range from 467 to 2800 ppm in indoor CO2 was significantly associated with dry throat, tiredness, and dizziness (417 participants from 87 offices) (Lu et al., 2015). A 100 ppm increase in CO2 concentration (range, 549–1318 ppm) was positively correlated with non-specific symptoms including headache and dizziness (107 participants from 11 offices) although the correlation was not significant (Azuma et al., 2018).
    Twenty-two participants were exposed to CO2 at 600, 1000, and 2500 ppm (three 2.5-h sessions, one day; artificially elevated CO2 concentrations) in an office-like chamber. Statistically significant decrements occurred in cognitive performance (decision making, problem resolution) starting at 1000 ppm (Satish et al., 2012).
    CO2

    Picture: SMOGGIE-CO2 monitors your home to improve your health

    In schools:
    A study in schoolchildren exposed to indoor CO2 concentrations higher than 1000 ppm showed significantly higher risk for dry cough and rhinitis (654 children of 46 classrooms) but outdoor air flow rate per person was inversely correlated with indoor CO2 concentrations (Simoni et al., 2010). A 200 ppm increase in indoor CO2 concentration (range, 1000–2000 ppm) in 45 day care centers (DCCs) was significantly associated with reported wheezing in the 3186 attending children, and a positive trend was observed between CO2 concentration and the prevalence of asthma.

    [1] Effects of low-level inhalation exposure to carbon dioxide in indoor environments
    SMOGGIE-CO2 is designed as an automated, fixed, Air Quality monitoring station that measures and reports the Carbon Dioxide concentration automatically, 24/7. It comes with built-in Wifi connectivity and it only needs 5V to run, supplied via a standard micro-USB cable. It will monitor your location 24/7 to inform you on elevated CO2 levels that can impact your health.
    The units can be managed via the dashboard. The data can be viewed remotely on a computer or on a mobile device.
    Picture: uRADMonitor SMOGGIE motherboard and enclosure
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent80mA (max 170mA on CO2 pulse)
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    EnclosureRainproof plastic42x43x27 mm
    Your uRADMonitor unit can be mounted both indoors and outdoors where the enclosure offers protection against sun, rain or snow. The unit has a plastic enclosure with two holes and can be easily attached to a wall with only two screws. The sensor opening must face down for open air access. Make sure that nothing is blocking the air vents. The openings and the internal heating of the electronics are aligned to generate an active airflow.
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your SMOGGIE unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The first time, the key is the Device ID, in uppercase, as printed on the enclosure. You can change this key later. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Select the SSID and enter the key of your Internet Access Point.
    Picture: SMOGGIE Config Page
    If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your SMOGGIE via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.



    Hardware version 5

    SMOGGIE-GAS
    Contact us


    This is a compact, automated GAS monitor. It accommodates a single electrochemical cell that you can choose to match the gas you need to detect. Currently we support H2S, CO, O2, NH3, NO2, HF, SO2, CL2, O3, H2, HCL. There is an additional sensor for temperature and humidity. It connects to the internet via Wifi and can be powered by a standard 5V micro-usb cable. It provides real time 24/7 monitoring for toxic gases.
    It comes with:
    Power adapter, 1m power cable, instructions

    Availability:
    Available, limited stock.

    More: Example | Datasheet | API | USB

    Price: $389 USD






    Trance, USA: "It indeed seems like an extremely comprehensive and sturdy device."



    SMOGGIE-GAS is an automated, fixed, toxic gases monitoring station. It has Wifi connectivity to send the air quality measurements to the uRADMonitor Cloud in real time. It needs 5V to run, powered by a standard micro-USB cable. This unit doesn't have a screen, it works as a monitor and the data can be viewed remotely on a computer or on a mobile device.
    SensorParameterResolutionMinimum valueMaximum value
    MEMsTemperature0.5°C-40 °C+85 °C
    Humidity1%RH0%RH100% RH
    Electrochemical SensorH2S0.1 ppm0 ppm 100 ppm
    O30.1 ppm0 ppm 10 ppm
    NO20.1 ppm0 ppm 10 ppm
    SO20.1 ppm0 ppm 20 ppm
    CO1 ppm0 ppm 200 ppm
    To see complete specs see the technical datasheet.

    By the nature of the technology used, any sensor can potentially fail to meet specification without warning. We make every effort to ensure reliability of all sensors but where life safety is a performance requirement of the product and, where practical, we recommend that all gas sensors and instruments using sensors are checked for response to gas before use. We accept no liability for any consequential losses, injury or damage resulting from the use of the uRADMonitor products. Customers should test the sensors under their own conditions to ensure that the sensors are suitable for their own requirements and in accordance with the plans and circumstances of the specified project and any standards / regulations pertaining to the country in which the sensors will be utilized.
    Hydrogen sulfide is the chemical compound with the formula H2S. It is a colorless chalcogen hydride gas with the characteristic foul odor of rotten eggs. It is very poisonous, corrosive, and flammable.
    Hydrogen sulfide is often produced from the microbial breakdown of organic matter in the absence of oxygen gas, such as in swamps and sewers; this process is commonly known as anaerobic digestion which is done by sulfate-reducing microorganisms. H2S also occurs in volcanic gases, natural gas, and in some sources of well water. [1]
    Hydrogen sulfide is a broad-spectrum poison, meaning that it can poison several different systems in the body, although the nervous system is most affected. The toxicity of H2S is comparable with that of carbon monoxide. It binds with iron in the mitochondrial cytochrome enzymes, thus preventing cellular respiration. Since hydrogen sulfide occurs naturally in the body, the environment, and the gut, enzymes exist to detoxify it. At some threshold level, believed to average around 300–350 ppm, the oxidative enzymes become overwhelmed. Many personal safety gas detectors, such as those used by utility, sewage and petrochemical workers, are set to alarm at as low as 5 to 10 ppm and to go into high alarm at 15 ppm. Detoxification is effected by oxidation to sulfate, which is harmless. Hence, low levels of hydrogen sulfide may be tolerated indefinitely.
    Exposure to lower concentrations can result in eye irritation, a sore throat and cough, nausea, shortness of breath, and fluid in the lungs (pulmonary edema). These effects are believed to be due to the fact that hydrogen sulfide combines with alkali present in moist surface tissues to form sodium sulfide, a caustic. These symptoms usually go away in a few weeks.
    Long-term, low-level exposure may result in fatigue, loss of appetite, headaches, irritability, poor memory, and dizziness. Chronic exposure to low level H2S (around 2 ppm) has been implicated in increased miscarriage and reproductive health issues among Russian and Finnish wood pulp workers, but the reports have not (as of circa 1995) been replicated.
    Short-term, high-level exposure can induce immediate collapse, with loss of breathing and a high probability of death. If death does not occur, high exposure to hydrogen sulfide can lead to cortical pseudolaminar necrosis, degeneration of the basal ganglia and cerebral edema. Although respiratory paralysis may be immediate, it can also be delayed up to 72 hours.
  • 0.00047 ppm or 0.47 ppb is the odor threshold, the point at which 50% of a human panel can detect the presence of an odor without being able to identify it.
  • 10 ppm is the OSHA permissible exposure limit (PEL) (8 hour time-weighted average).
  • 10–20 ppm is the borderline concentration for eye irritation.
  • 20 ppm is the acceptable ceiling concentration established by OSHA.
  • 50 ppm is the acceptable maximum peak above the ceiling concentration for an 8-hour shift, with a maximum duration of 10 minutes.
  • 50–100 ppm leads to eye damage.
  • At 100–150 ppm the olfactory nerve is paralyzed after a few inhalations, and the sense of smell disappears, often together with awareness of danger.
  • 320–530 ppm leads to pulmonary edema with the possibility of death.
  • 530–1000 ppm causes strong stimulation of the central nervous system and rapid breathing, leading to loss of breathing.
  • 800 ppm is the lethal concentration for 50% of humans for 5 minutes' exposure (LC50)
  • Concentrations over 1000 ppm cause immediate collapse with loss of breathing, even after inhalation of a single breath.


  • Carbon monoxide (CO) is a colorless, odorless, and tasteless flammable gas that is slightly less dense than air. It is toxic to animals that use hemoglobin as an oxygen carrier (both Invertebrate and vertebrate) when encountered in concentrations above about 35 ppm, although it is also produced in normal animal metabolism in low quantities, and is thought to have some normal biological functions. In the atmosphere, it is spatially variable and short lived, having a role in the formation of ground-level ozone.[2] Carbon monoxide poisoning is the most common type of fatal air poisoning in many countries. Carbon monoxide is colorless, odorless, and tasteless, but highly toxic. It combines with hemoglobin to produce carboxyhemoglobin, which usurps the space in hemoglobin that normally carries oxygen, but is ineffective for delivering oxygen to bodily tissues. Concentrations as low as 667 ppm may cause up to 50% of the body's hemoglobin to convert to carboxyhemoglobin. A level of 50% carboxyhemoglobin may result in seizure, coma, and fatality. In the United States, the OSHA limits long-term workplace exposure levels above 50 ppm.
    The most common symptoms of carbon monoxide poisoning may resemble other types of poisonings and infections, including symptoms such as headache, nausea, vomiting, dizziness, fatigue, and a feeling of weakness. Affected families often believe they are victims of food poisoning. Infants may be irritable and feed poorly. Neurological signs include confusion, disorientation, visual disturbance, syncope (fainting), and seizures.
    Some descriptions of carbon monoxide poisoning include retinal hemorrhages, and an abnormal cherry-red blood hue. In most clinical diagnoses these signs are seldom noticed. One difficulty with the usefulness of this cherry-red effect is that it corrects, or masks, what would otherwise be an unhealthy appearance, since the chief effect of removing deoxygenated hemoglobin is to make an asphyxiated person appear more normal, or a dead person appear more lifelike, similar to the effect of red colorants in embalming fluid. The "false" or unphysiologic red-coloring effect in anoxic CO-poisoned tissue is related to the meat-coloring commercial use of carbon monoxide, discussed below.
    Carbon monoxide also binds to other molecules such as myoglobin and mitochondrial cytochrome oxidase. Exposures to carbon monoxide may cause significant damage to the heart and central nervous system, especially to the globus pallidus, often with long-term chronic pathological conditions. Carbon monoxide may have severe adverse effects on the fetus of a pregnant woman.

    [1] Hydrogen sulfide
    [2] Carbon monoxide
    SMOGGIE-GAS is designed as an automated, fixed, Air Quality monitoring station that measures and reports the target gas concentration automatically, 24/7. It comes with built-in Wifi connectivity and it only needs 5V to run, supplied via a standard micro-USB cable. It will monitor your location 24/7 to inform you on elevated GAS levels that can impact your health. Each SMOGGIE-GAS comes with one electrochemical sensor to measure H2S, O3, NO2, SO2 or CO. You can choose the gas at checkout.
    The units can be managed via the dashboard. The data can be viewed remotely on a computer or on a mobile device.
    Picture: uRADMonitor SMOGGIE motherboard and enclosure
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent80mA
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    EnclosureRainproof plastic42x43x47 mm
    Your uRADMonitor unit can be mounted both indoors and outdoors where the enclosure offers protection against sun, rain or snow. The unit has a plastic enclosure with two holes and can be easily attached to a wall with only two screws. The sensor opening must face down for open air access. Make sure that nothing is blocking the air vents. The openings and the internal heating of the electronics are aligned to generate an active airflow.
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your SMOGGIE unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. You can change this key later. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Select the SSID and enter the key of your Internet Access Point.
    Picture: SMOGGIE Config Page
    If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your SMOGGIE via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.



    Hardware version 5

    MODEL CITY
    Contact us


    This automated, fixed monitoring station for urban environmental monitoring offers unmatched 1PPB resolution for gases, so it is capable of detecting even the slightest changes in ambient air composition. It tracks a total of 10 important air quality parameters including Particulate Matter, Carbon Monoxide, Ozone, Sulphur Dioxide, Nitrogen Dioxide. It comes in a rain proof Stevenson enclosure ready for outdoor use. The data can be accessed in real time using the cloud API interface or directly via the local network.
    It comes with:
    Power adapter, power cable, antenna, instructions

    Availability:
    Available, limited stock.

    More: Example | Datasheet | API | USB

    Price: $3749 USD






    Elia, Germany: "hope that your project will be successful and that the network will continue to grow!"



    uRADMonitor CITY is our professional range Air Quality Monitor, intended for ambient air monitoring in urban or smart city applications. It comes with 4 digital 1PPB gas resolution sensors for Ozone, Nitrogen Dioxide, Sulphur Dioxide and Carbon Monoxide and with an industrial range Particulate Matter sensor for PM1, PM2.5 and PM10. It supports a large number of connectivity options for data upload including Ethernet, WIFI, GSM/GPRS, LoRaWAN (EU868, US915, IL915, AU915, AS923, IN865, etc), NB-IOT, LTE-M. The data is automatically handled and accessible with the API, so the entire setup becomes plug and play.
    SensorParameterMinimum valueMaximum value
    MEMSTemperature-40 °C+85 °C
    Humidity0% RH100% RH
    Barometric Pressure300 hPa1100 hPa
    Laser ScatteringPM1.00 μg/m³ 1000 μg/m³
    PM2.50 μg/m³ 1000 μg/m³
    PM100 μg/m³ 1000 μg/m³
    Electrochemical 1ppbOzone0 ppm 1ppm
    Electrochemical 1ppbNitrogen Dioxide0 ppm 1 ppm
    Electrochemical 1ppbSulphur Dioxide0 ppm 1 ppm
    Electrochemical 1ppbCarbon Monoxide0 ppm 10 ppm
    Warning: By the nature of the technology used, any sensor can potentially fail to meet specification without warning. We make every effort to ensure reliability of all sensors but where life safety is a performance requirement of the product and, where practical, we recommend that all gas sensors and instruments using sensors are checked for response to gas before use. We accept no liability for any consequential losses, injury or damage resulting from the use of the uRADMonitor products. Customers should test the sensors under their own conditions to ensure that the sensors are suitable for their own requirements and in accordance with the plans and circumstances of the specified project and any standards / regulations pertaining to the country in which the sensors will be utilized.
    Air pollution is the single largest environmental cause of premature death in urban Europe and transport is the main source. The 2008 Air Quality Directive, now under review, obliges member states to cut exposure to fine particulate matter by an average of 20% by 2020, based on 2010 levels.
    The National Emissions Ceiling Directive caps some emissions including particulate matter (PM) and nitrogen dioxide (NOx) at national level. A revised version of the directive is as of 2016 under scrutiny by the Council of Ministers and European Parliament. Across the EU in 2013, nitrogen dioxide (NO2), which is mostly produced by traffic, caused 68,000 premature deaths. The Dieselgate scandal exposed how Volkswagen had gamed NO2 emissions tests.
    Ozone (O3) killed 16,000 and small particulate matter (PM2.5) caused 436,000 deaths in the same year. PM2.5 particles, microscopic specks of dust and soot caused by burning fossil fuels, can enter the lungs and bloodstream.
    health_effects_banner_a3 Air pollution has different particulate matter (PM) components – smoke, dirt and dust form coarse particles known as PM10 and metals and toxic exhaust from smelting, vehicle exhaust, power plants and refuse burning forming fine particles called PM2.5.
    uRADMonitor CITY is equipped with all sensors required to compute the Air Quality Index as defined by several international standards on air quality and give a direct assessment on the pollution problem and possible infringements.
    The 1PPB capability of the gas sensors means the “uRADMonitor CITY” is suitable for monitoring the ambient air. The sensitivity of the device allows identifying and tracking even the slightest pollution variations. The model CITY is designed as a fixed monitoring station, but with the optional GPS receiver and the optional internal battery it can work as a versatile mobile detector of excellent sensitivity. It comes in multiple variants, each accomodating one connectivity option to send the data online: Ethernet, WIFI, GSM/GPRS, LoRaWAN, NB-IOT, LTE-M. It works on mains voltage or 6V - 24V interval and uses little power to run. The data can be viewed on a computer or on a mobile device.
    Your uRADMonitor unit is ready to be used outdoors. Install it on a pole or on a wall. Installation is easy. Make sure that nothing is blocking the air vents.


    Picture: uRADMonitor CITY installed outdoors

    If you have a radio variant with an antenna, connect the antenna first. Next, connect the uRADMonitor to the power source. Be careful when working with mains voltage. Alternativelly you can connect the uRADMonitor to the power source using a DC adapter with voltage between 6V and 24V or via the USB port with a 5V USB adapter. The device comes with an USB port, so the configuration settings can be customized via the USB connection. Consult your product manual for how to use the USB connection.

  • The WIFI variant
    Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. Read more in the WIFI configuration manual.
  • The LORAWAN variant
    Configure the LoRaWAN network server details via USB. See the USB manual.
  • The Ethernet variant
    This goes plug and play as it only needs an Internet Router with DHCP enabled : the uRADMonitor CITY will receive an IP automatically and stard broadcasting data without any other configuration requirements.

  • Quick start guide
    Technical Datasheet
    USB Serial Commands Manual
    LoRaWAN Data Server Callback manual
    API and Server Specs
    Product Limited Warranty terms
    uRADMonitor with WIFI Configuration manual

    Accuracy lab tests and certifications
    AIRPARIF France AIRLAB 2023 Lab tests

    USB Driver
    In their recent versions, Windows, Linux and MacOS come with built in drivers for your uRADMonitor unit. Use the following resources only if the built in drivers do not work for you.
    USB Driver for Windows
    USB Driver for Linux
    USB Driver for MacOS

    RO:
    Fisa tehnica



    Hardware version 1

    MODEL seeRADON
    Contact us


    seeRADON continues uRADMonitor’s now established tradition to venture into the invisible, delivering real time data on the chemical and physical surrounding factors that can harm your health. This time, seeRADON is a modern IOT sensor that tracks the radioactive gas RADON. It features a solid state sensor for detection of Radon daughters’ alpha particles. Combined with the WIFI connectivity you’ll be able to monitor your RADON levels in real time.
    It comes with:
    Power adapter, power cable, instructions

    Availability:
    Out of stock. Contact us if needed.

    More: Example | Datasheet | API | USB

    Price: $589 USD






    Bob, US: "I have very much admired your projects for the global radiation monitoring network. Your efforts also maximize perhaps the most powerful resource of all"



    Automatic monitor for radon concentration. Our powerful API enables to use your seeRADON sensor with other home automation systems, like starting your ventilation automatically when dangerous RADON levels are reached.
    SensorParameterMinimum valueMaximum value
    MEMSTemperature-40 °C+125 °C
    Humidity0% RH100% RH
    SemiconductorRadon0.1 pCi/L 1750 pCi/L
    To see complete specs see the technical datasheet.
    When radon and its degradation products are inhaled, they emit alpha particles, which can damage living cells in the lungs, causing radon-induced lung cancer. Thus, radon is the leading cause of lung cancer among non-smokers, according to EPA estimates. In general, radon is the second leading cause of lung cancer. Radon is responsible for approximately 21,000 deaths from lung cancer each year. About 2,900 of these deaths occur among people who have never smoked [1] health_effects_banner_a3
    Picture: Radon circuit and health risk
    The purpose of uRADMonitor is to generate completely transparent open data, to raise awareness of environmental issues among the population and to take responsibility in our relationship with the environment. The devices are of Romanian design and are produced in Timișoara. Early monitoring of Radon allows us to take mitigation measures, avoiding the negative impact on our health. [1] Health Risk of Radon, EPA
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent50mA
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    EnclosureRainproof plastic85x85x50 mm 100grams
    The unit comes in a non-sealed housing. Protect the appliance from rain, snow and water in general because the electronic elements inside are very sensitive. Do not cover the air circulation holes. The sensor must not be exposed to strong direct light! This may adversely affect the measurement. Do not expose the device to large amounts of dust, such as in woodworking centers. Do not expose the device to solvents or a large amount of concentrated chemical vapors (acetone, paints, alcohol, butane, propane, etc.), as the sensors may wear out or the measurements may become inconclusive. Do not expose the device to mechanical shock.
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your seeRADON unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your seeRADON via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.



    Hardware version 1

    MODEL BUZZ
    Contact us


    Industrial grade Noise meter with a WIFI connection to report sound level measurements in real time. The data can be accessed via the API interface or directly via the local network.
    It comes with:
    Power adapter, power cable, instructions

    Availability:
    Available, ships right away.

    More: Example | Datasheet | API | USB

    Price: $199 USD






    Martin, UK: "Congratulations on an excellent idea and brilliant implementation!"



    BUZZ combines a digital noise sensor with a WIFI connectivity module to give you real time noise monitoring. It is an industrial grade noise meter that can be used both at indoors and outdoors.
    SensorParameterMinimum valueMaximum value
    MEMSTemperature-40 °C+125 °C
    Humidity0% RH100% RH
    SM7901Noise30 dB 130 dB
    To see complete specs see the technical datasheet.
    BUZZ can help you monitor noise levels in your company or production facility. Noise Induced Hearing Loss (NIHL) is the most common and often discussed health effect, but research has shown that exposure to constant or high levels of noise can cause countless adverse health affects. [1] health_effects_banner_a3
    Picture: uRADMonitor does real time environmental monitoring
    [1] Noise Pollution, US Environmental Protection Agency
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent50mA
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    EnclosureRainproof plastic85x44x20 mm
    Your uRADMonitor unit can be mounted both indoors and outdoors .For mounting, use the two holes in the housing. Ensure that you properly connect the power cord and secure it against vibration where necessary. If your BUZZ has a transparent resin case, screw carefully because the case is brittle. The distance between the center of the fixing holes is 75mm.
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your BUZZ unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your BUZZ via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.



    Hardware version 1

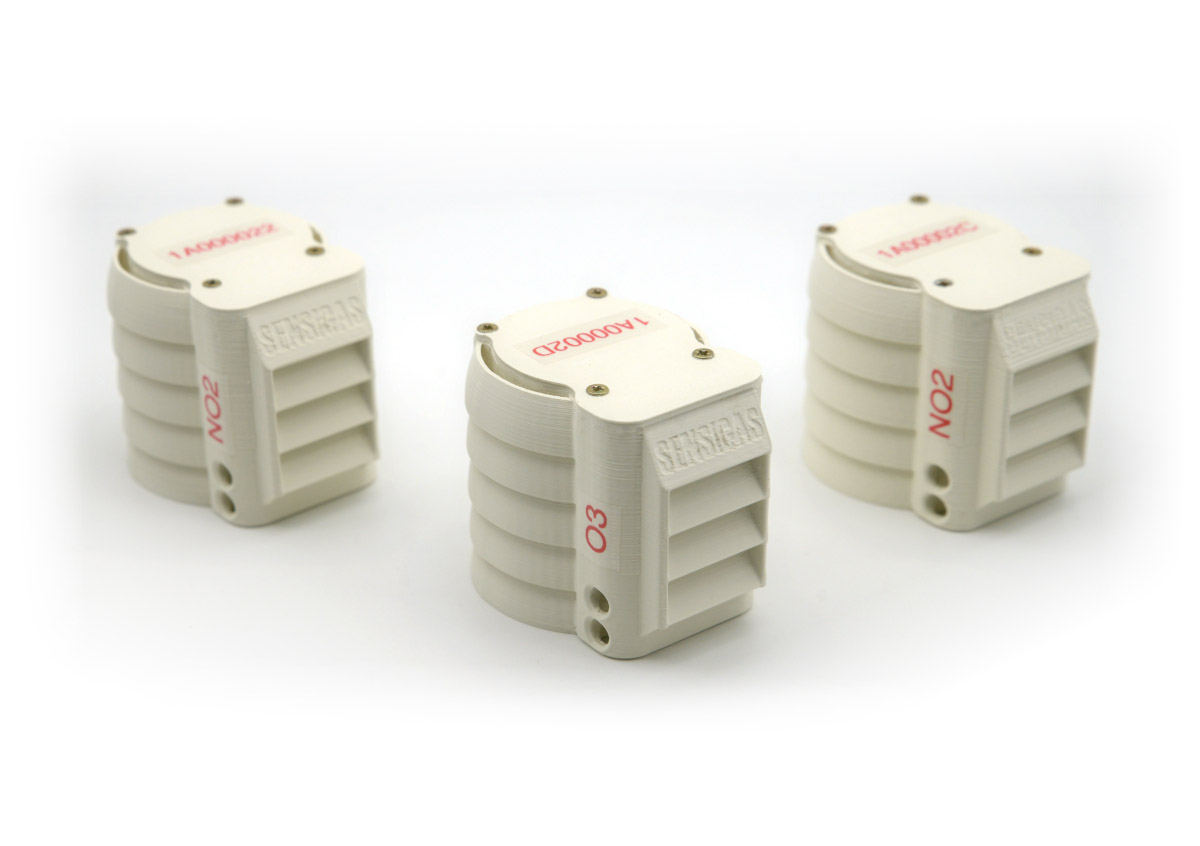

    SENSIGAS
    Contact us


    The sensitivity of this sensor is unmatched: With this automated sensor you can monitor the gas you choose down to 1PPB resolution, so this will pick up even the gas traces in ambient air composition. It accommodates a single electrochemical cell that you can choose to match the gas you need to detect. Currently we support H2S, CO, NO2, SO2 and O3. There is an additional embedded sensor for temperature and humidity. It connects to the internet via WIFI and can be powered by a standard 5V micro-usb cable. It provides real time 24/7 monitoring for toxic gases.
    It comes with:
    Power adapter, 1m power cable, instructions

    Availability:
    Available, limited stock.

    More: Example | Datasheet | API | USB

    Price: $749 USD






    Yves, France: "According to what you did with UradMonitor, it is already for me a big success."

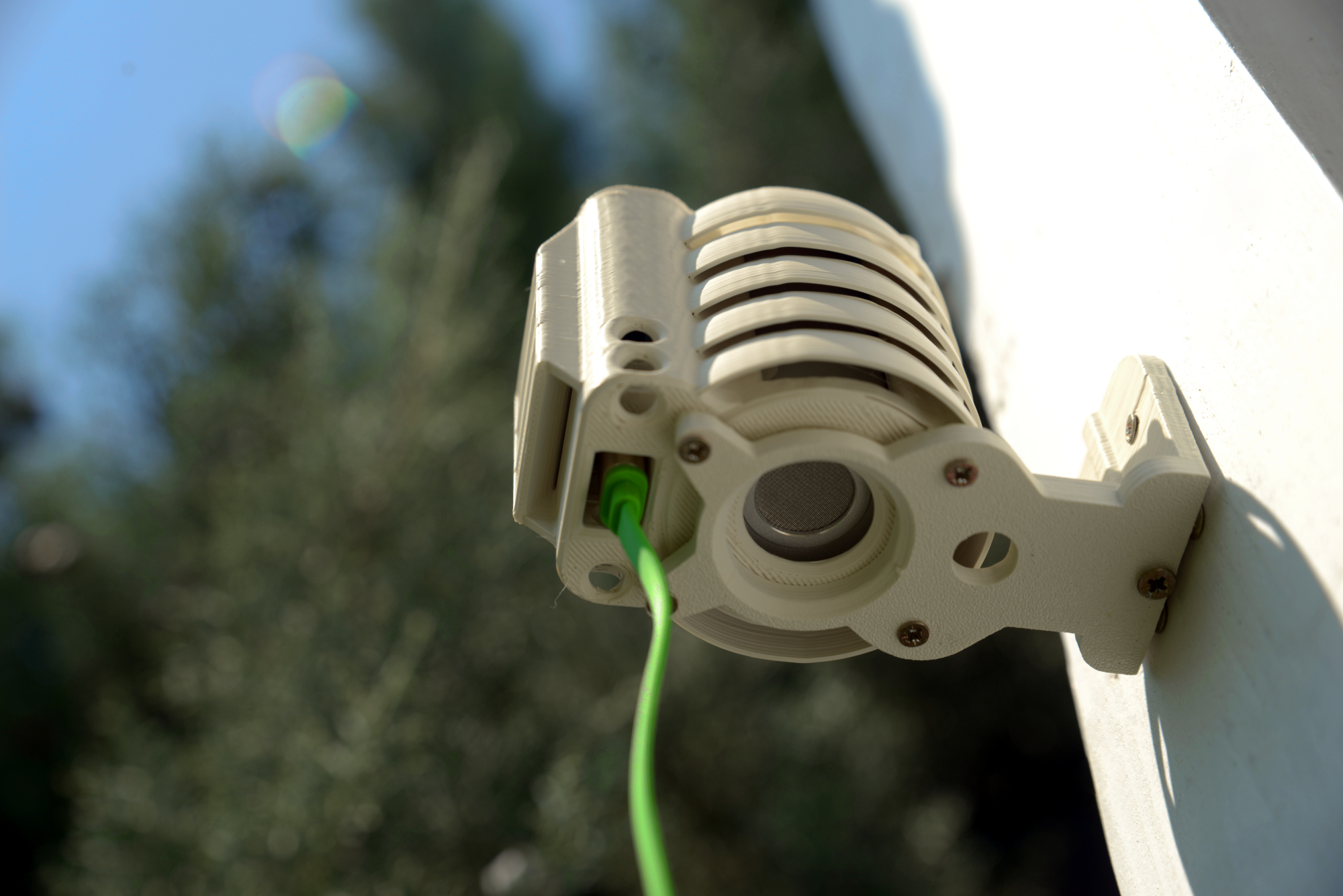

    SENSIGAS is a high sensitivity automated sensor for toxic gases monitoring. It has Wifi connectivity to send the air quality measurements to the uRADMonitor Cloud in real time. It needs 5V to run, powered by a standard micro-USB cable. This unit doesn't have a screen, it works as a monitor and the data can be viewed remotely on a computer or on a mobile device.
    SensorParameterResolutionMinimum valueMaximum value
    MEMsTemperature0.5°C-40 °C+85 °C
    Humidity1%RH0%RH100% RH
    Electrochemical SensorH2S1 ppb1 ppb 1 ppm
    O31 ppb1 ppb 1 ppm
    NO21 ppb1 ppb 1 ppm
    SO21 ppb1 ppb 1 ppm
    CO1 ppb1 ppb 10 ppm
    To see complete specs see the technical datasheet.

    By the nature of the technology used, any sensor can potentially fail to meet specification without warning. We make every effort to ensure reliability of all sensors but where life safety is a performance requirement of the product and, where practical, we recommend that all gas sensors and instruments using sensors are checked for response to gas before use. We accept no liability for any consequential losses, injury or damage resulting from the use of the uRADMonitor products. Customers should test the sensors under their own conditions to ensure that the sensors are suitable for their own requirements and in accordance with the plans and circumstances of the specified project and any standards / regulations pertaining to the country in which the sensors will be utilized.
    Hydrogen sulfide is the chemical compound with the formula H2S. It is a colorless chalcogen hydride gas with the characteristic foul odor of rotten eggs. It is very poisonous, corrosive, and flammable.
    Hydrogen sulfide is often produced from the microbial breakdown of organic matter in the absence of oxygen gas, such as in swamps and sewers; this process is commonly known as anaerobic digestion which is done by sulfate-reducing microorganisms. H2S also occurs in volcanic gases, natural gas, and in some sources of well water. [1]
    Hydrogen sulfide is a broad-spectrum poison, meaning that it can poison several different systems in the body, although the nervous system is most affected. The toxicity of H2S is comparable with that of carbon monoxide. It binds with iron in the mitochondrial cytochrome enzymes, thus preventing cellular respiration. Since hydrogen sulfide occurs naturally in the body, the environment, and the gut, enzymes exist to detoxify it. At some threshold level, believed to average around 300–350 ppm, the oxidative enzymes become overwhelmed. Many personal safety gas detectors, such as those used by utility, sewage and petrochemical workers, are set to alarm at as low as 5 to 10 ppm and to go into high alarm at 15 ppm. Detoxification is effected by oxidation to sulfate, which is harmless. Hence, low levels of hydrogen sulfide may be tolerated indefinitely.
    Exposure to lower concentrations can result in eye irritation, a sore throat and cough, nausea, shortness of breath, and fluid in the lungs (pulmonary edema). These effects are believed to be due to the fact that hydrogen sulfide combines with alkali present in moist surface tissues to form sodium sulfide, a caustic. These symptoms usually go away in a few weeks.
    Long-term, low-level exposure may result in fatigue, loss of appetite, headaches, irritability, poor memory, and dizziness. Chronic exposure to low level H2S (around 2 ppm) has been implicated in increased miscarriage and reproductive health issues among Russian and Finnish wood pulp workers, but the reports have not (as of circa 1995) been replicated.
    Short-term, high-level exposure can induce immediate collapse, with loss of breathing and a high probability of death. If death does not occur, high exposure to hydrogen sulfide can lead to cortical pseudolaminar necrosis, degeneration of the basal ganglia and cerebral edema. Although respiratory paralysis may be immediate, it can also be delayed up to 72 hours.
  • 0.00047 ppm or 0.47 ppb is the odor threshold, the point at which 50% of a human panel can detect the presence of an odor without being able to identify it.
  • 10 ppm is the OSHA permissible exposure limit (PEL) (8 hour time-weighted average).
  • 10–20 ppm is the borderline concentration for eye irritation.
  • 20 ppm is the acceptable ceiling concentration established by OSHA.
  • 50 ppm is the acceptable maximum peak above the ceiling concentration for an 8-hour shift, with a maximum duration of 10 minutes.
  • 50–100 ppm leads to eye damage.
  • At 100–150 ppm the olfactory nerve is paralyzed after a few inhalations, and the sense of smell disappears, often together with awareness of danger.
  • 320–530 ppm leads to pulmonary edema with the possibility of death.
  • 530–1000 ppm causes strong stimulation of the central nervous system and rapid breathing, leading to loss of breathing.
  • 800 ppm is the lethal concentration for 50% of humans for 5 minutes' exposure (LC50)
  • Concentrations over 1000 ppm cause immediate collapse with loss of breathing, even after inhalation of a single breath.


  • Carbon monoxide (CO) is a colorless, odorless, and tasteless flammable gas that is slightly less dense than air. It is toxic to animals that use hemoglobin as an oxygen carrier (both Invertebrate and vertebrate) when encountered in concentrations above about 35 ppm, although it is also produced in normal animal metabolism in low quantities, and is thought to have some normal biological functions. In the atmosphere, it is spatially variable and short lived, having a role in the formation of ground-level ozone.[2] Carbon monoxide poisoning is the most common type of fatal air poisoning in many countries. Carbon monoxide is colorless, odorless, and tasteless, but highly toxic. It combines with hemoglobin to produce carboxyhemoglobin, which usurps the space in hemoglobin that normally carries oxygen, but is ineffective for delivering oxygen to bodily tissues. Concentrations as low as 667 ppm may cause up to 50% of the body's hemoglobin to convert to carboxyhemoglobin. A level of 50% carboxyhemoglobin may result in seizure, coma, and fatality. In the United States, the OSHA limits long-term workplace exposure levels above 50 ppm.
    The most common symptoms of carbon monoxide poisoning may resemble other types of poisonings and infections, including symptoms such as headache, nausea, vomiting, dizziness, fatigue, and a feeling of weakness. Affected families often believe they are victims of food poisoning. Infants may be irritable and feed poorly. Neurological signs include confusion, disorientation, visual disturbance, syncope (fainting), and seizures.
    Some descriptions of carbon monoxide poisoning include retinal hemorrhages, and an abnormal cherry-red blood hue. In most clinical diagnoses these signs are seldom noticed. One difficulty with the usefulness of this cherry-red effect is that it corrects, or masks, what would otherwise be an unhealthy appearance, since the chief effect of removing deoxygenated hemoglobin is to make an asphyxiated person appear more normal, or a dead person appear more lifelike, similar to the effect of red colorants in embalming fluid. The "false" or unphysiologic red-coloring effect in anoxic CO-poisoned tissue is related to the meat-coloring commercial use of carbon monoxide, discussed below.
    Carbon monoxide also binds to other molecules such as myoglobin and mitochondrial cytochrome oxidase. Exposures to carbon monoxide may cause significant damage to the heart and central nervous system, especially to the globus pallidus, often with long-term chronic pathological conditions. Carbon monoxide may have severe adverse effects on the fetus of a pregnant woman.

    [1] Hydrogen sulfide
    [2] Carbon monoxide
    SENSIGAS is designed to detect very low concentrations of toxic gases. It does this by using a high volume electrochemical sensor with enhanced stability and response. As an automated, fixed, Air Quality monitoring station that measures and reports the target gas concentration automatically, 24/7. It comes with built-in Wifi connectivity and it only needs 5V to run, supplied via a standard micro-USB cable. It will monitor your location 24/7 to inform you on elevated GAS levels that can impact your health. Each sensor comes with one electrochemical sensor to measure the gas you select at purchase time (H2S, O3, NO2, SO2 or CO). You can choose the gas at checkout.
    The units can be managed via the dashboard. The data can be viewed remotely on a computer or on a mobile device.
    ItemParameterRatings
    VoltageExternal5V micro-USB
    ConsumptionCurrent80mA
    ConnectivityInternetWifi
    MicrocontrollerESP82668 bit
    Size and weightRainproof plastic57x44 (64 with brackets)x 60mm and 125grams
    Your uRADMonitor unit can be mounted both indoors and outdoors where the enclosure offers protection against sun, rain or snow. The unit has a plastic enclosure with two holes and can be easily attached to a wall with only two screws. The sensor opening must face down for open air access. Make sure that nothing is blocking the air vents. The openings and the internal heating of the electronics are aligned to generate an active airflow.
    Quick Setup
    Connect it to power using a 5V micro-USB cable. Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your SENSIGAS unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the Device ID, in uppercase, as printed on the enclosure. You can change this key later. Open 192.168.4.1 in your browser, and click the "WIFI/CONFIG" link to setup the connection to the Internet AP. Select the SSID and enter the key of your Internet Access Point.
    Picture: SENSIGAS Config Page
    If the connection fails, you will see the status message.
    USB configuration
    Alternatively, the SSID and KEY can also be configured via USB. Connect to your SENSIGAS via USB, baudrate 9600bps, open a terminal program and type the two commands: "key1","SSID" then "key2","your WLAN key" . Use the "getsettings" command to verify that the new settings are in place. Quotes are a must, and there are no spaces in between. See the USB Commands manual for more. See the USB Commands manual if you need more help.



    Hardware version 1

    MODEL A4
    Contact us


    Multiparameter advanced air quality monitoring station, in a rainproof enclosure for both outdoor and indoor use. Contains 8 individual sensors to track Temperature, Relative Humidity, Nitrogen Dioxide, Formaldehyde, Carbon Monoxide, Ozone, Carbon Dioxide, Particulate Matter PM1, PM2.5, PM10 and Volatile Organic Compounds (VOC). Modular design that saves costs. Stevenson shield included, ready for outdoor use!
    It comes with:
    Power adapter, instructions

    Availability:
    Available, ships right away.

    More: Example | Datasheet | API | USB

    Price: $440 USD






    Andrei A., Romania: The most accurate and widespread air quality monitoring network. I also own several of their sensors and all work flawlessly.



    uRADMonitor model A4 uses a MEMs sensor to measure air temperature and humidity. A MOX VOC sensor measures volatile organic compounds. Another MEMs sensor measures Nitrogen Dioxide (NO2) . A high quality laser scattering sensor is used to detect the Particulate Matter PM1 / PM2.5 and PM10 mass concentration in air. There are three electrochemical sensors, one for formaldehyde (CH2O), another one for Ozone (O3) and one for Carbon Monoxide (CO). A nondispersive infrared sensor for CO2. Everything is encapsulated under a high quality Stevenson Shield ready for outdoor use.
    Picture: uRADMonitor A4 has a modular design with sensors on a separate board that can be replaced all together easily
    SensorParameterMinimum valueMaximum value
    MEMsTemperature-20 °C+65 °C
    Humidity0% RH100% RH
    Laser scatteringPM1.00 μg/m³ 1000 μg/m³
    PM2.50 μg/m³ 1000 μg/m³
    PM100 μg/m³ 1000 μg/m³
    MEMsNitrogen Dioxide0 ppm10 ppm
    ElectrochemicalFormaldehyde0 ppm 5 ppm
    ElectrochemicalOzone0 ppm 10 ppm
    ElectrochemicalCarbon Monoxide0 ppm500 ppm
    NDIRCarbon Dioxide400 ppm 5000 ppm
    MOXVOC 0 3 *
    * VOC concentration is provided as a simple score 0 - 3 to reflect air quality

    Model A4 is a cost effective multiparameter automated monitor containing 8 high quality digital sensors that track a total of 11 air parameters. It has the capacity to fully characterize the ambient air in regards to health impact based on the major widespread pollutants.
    Your uRADMonitor unit can be mounted both indoors and outdoors. Its enclosure offers protection to the elements, including sun, rain and snow. A covered spot with some shadow if installed in the free air, is ideal. The stevenson shield enclosure has large air vents, make sure that nothing is blocking them and air can circulate freely. The enclosure has pole / wall-mounting brackets, making installation easy.
    Connect the uRADMonitor to the power source using the USB-C cable and the provided USB 5V Adaper.
    uRADMonitor Model A4 Works via WIFI
    Use a smartphone or a computer with WLAN capabilities to connect to the local hotspot spawned by your A4 unit. The SSID is uRADMonitor-XX, where XX are the last two digits of the Device ID number. The key is the "uradmonitor", in lowercase and without the quotes. You can change this default password later on. Open 192.168.4.1 in your browser, and click the "CONFIG" link to setup the connection to the Internet AP. Enter the SSID and key of your Internet Access Point. If the connection fails, you will see the status message, and three consecutive beeps will indicated the problem. Alternatively you can change the configuration using the USB data port. See the USB manual.

    Remember, the Wifi settings can be customized via the USB connection. Consult your product manual for complete details.
    Quick Start
    Technical Datasheet
    USB Serial Commands Manual
    LoRaWAN Data Server Callback manual
    Product Limited Warranty terms
    uRADMonitor with WIFI Configuration manual

    Data access:
    Terms of Service
    API Terms of Service
    API and Server Specs
    Direct Data access

    USB Driver
    In their recent versions, Windows, Linux and MacOS come with built in drivers for your uRADMonitor unit. Use the following resources only if the built in drivers do not work for you.
    USB Driver for Windows
    USB Driver for Linux
    USB Driver for MacOS

    RO:
    RO: Ghid rapid de utilizare
