  • #5462
    Robert
    Participant

    I have just installed my uRad A3 last week

    After some confusion about the VOC sensor output was cleared up, another question remains: I’m noticing sudden jumps of values for some of the sensors. Specifically the temperature sensor and the CO2 sensor seem to suffer from this.

    Has anybody else noticed similar flukes?

    #5467
    Robert
    Participant

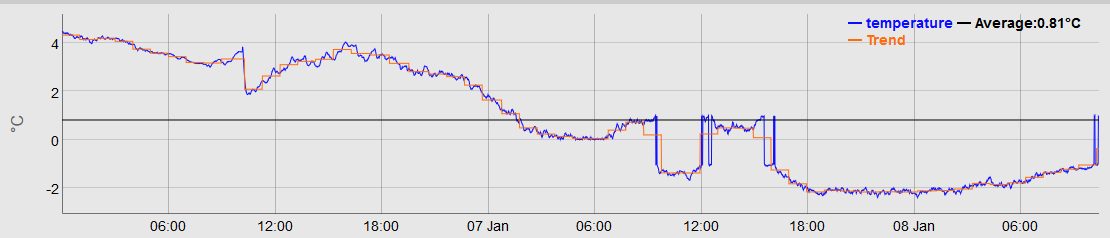

    The erroneous values seem to be inversions of the actual values. When mirroring these erroneous values around the X-axis, the result seems to make sense. This sign-flipping seems to occur at temperatures just around +1°C.

    Attachments:
    #5473
    Radu
    Keymaster

    Thanks to your findings, I was able to identify a bug in the temperature encoding scheme:

    uint16_t double2int(double val) {
    	int8_t sintp = (int8_t)val;				//signed integer part
    	int8_t sdecp = (val - sintp ) * 100;	//signed decimal part
    	uint8_t udecp = sdecp>0?sdecp:-1*sdecp; //removed decimal sign
    	uint8_t uintp = sintp + 127;			//convert to unsigned
    	uint16_t res = (udecp << 8) | (uint16_t)uintp;		//pack it together
    	return res;
    }

    The sign is lost when the integer part is 0, exactly all values between 0 and -1. The fix is added to the firmware as we speak, unless it can be solved on the server side.

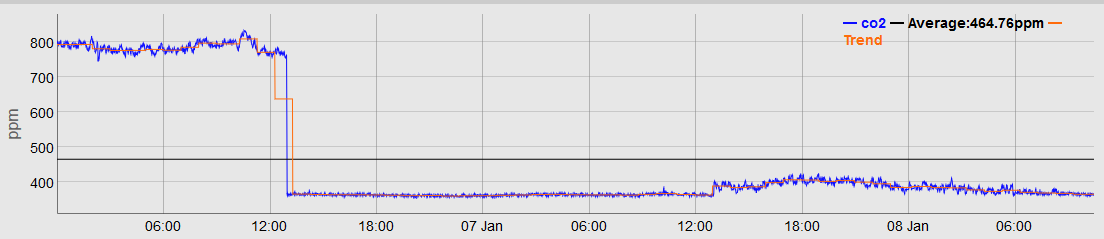

    For CO2, let’s continue herE: https://www.uradmonitor.com/topic/co2-sensor/

    #5475
    Robert
    Participant

    Thank you for sharing. I’ve put the code in a little test program:


    uint16_t double2int(double val)
    {
    	int8_t   sintp = (int8_t)val;                     /* signed integer part */
    	int8_t   sdecp = (val - sintp) * 100;             /* signed decimal part */
    	uint8_t  udecp = (sdecp > 0) ? sdecp : -sdecp;    /* removed decimal sign */
    	uint8_t  uintp = sintp + 127;                     /* convert to unsigned */
    	uint16_t res   = (udecp << 8) | (uint16_t)uintp;  /* pack it together */

    	return res;
    }

    int main(int argc, char *argv[])
    {
    	double  value;

    	for (value = -2.0; value < 2.01; value += 0.1) {
    		uint16_t  converted = double2int(value);
    		printf("value = %f, converted = %u\n", value, converted);
    	}
    }



    And I’m getting the following result:


    value = -2.000000, converted = 125
    value = -1.900000, converted = 22910
    value = -1.800000, converted = 20350
    value = -1.700000, converted = 17790
    value = -1.600000, converted = 15230
    value = -1.500000, converted = 12670
    value = -1.400000, converted = 10110
    value = -1.300000, converted = 7550
    value = -1.200000, converted = 4990
    value = -1.100000, converted = 2430
    value = -1.000000, converted = 25471
    value = -0.900000, converted = 22911
    value = -0.800000, converted = 20351
    value = -0.700000, converted = 17791
    value = -0.600000, converted = 15231
    value = -0.500000, converted = 12671
    value = -0.400000, converted = 10111
    value = -0.300000, converted = 7551
    value = -0.200000, converted = 4991
    value = -0.100000, converted = 2431
    value = 0.000000, converted = 127
    value = 0.100000, converted = 2687
    value = 0.200000, converted = 5247
    value = 0.300000, converted = 7807
    value = 0.400000, converted = 10367
    value = 0.500000, converted = 12927
    value = 0.600000, converted = 15487
    value = 0.700000, converted = 18047
    value = 0.800000, converted = 20607
    value = 0.900000, converted = 23167
    value = 1.000000, converted = 128
    value = 1.100000, converted = 2688
    value = 1.200000, converted = 5248
    value = 1.300000, converted = 7808
    value = 1.400000, converted = 10368
    value = 1.500000, converted = 12928
    value = 1.600000, converted = 15488
    value = 1.700000, converted = 18048
    value = 1.800000, converted = 20608
    value = 1.900000, converted = 23168
    value = 2.000000, converted = 129


    Though I’m not really sure what I’m looking at. Can you tell me what goes in and what’s supposed to come out? Is the output supposed to be a fixed-point value?

    #5476
    Radu
    Keymaster

    I’ve provided more details on email, please check it. But for the continuity of the topic, the bug becomes apparent when you decode the “converted” values. Please add the decoding function:

    double int2double(uint16_t val) {
    	int8_t d = (val >> 8) & 0xFF;
    	int8_t i = (val & 0xFF) - 127;
    	if (i < 0) d *= -1;
    	return i + d / 100.0;
    }

    The if (i < 0) d *= -1; won't trigger when i is 0. The problem with this algorithm is that we have no way of knowing the sign, when the integer byte is 0. Exactly the bug you have spotted. Try this code to the "converted" values, and check the more details I sent on your email. I tried to see if this is fixable on the server side, but apparently information is lost on the conversion. A new encoding scheme has been added to the firmware. We will need to install this new firmware on all affected units.

    #5484
    Robert
    Participant

    As suggested per email, but to keep this top compleet: Why not using standard 16-bit signed integers?

    Conversions back and forth with a little test program would look like this:


    #include <stdio.h>
    #include <stdint.h>

    #define FIXED_POINT_FACTOR	100.0;

    int16_t double2fixed(double val)
    {
    	val *= FIXED_POINT_FACTOR;

    	if (val > INT16_MAX)
    		return INT16_MAX;
    	if (val < INT16_MIN)
    		return INT16_MIN;

    	return val;
    }

    double fixed2double(int16_t val)
    {
    	return val / FIXED_POINT_FACTOR;
    }

    int main(int argc, char *argv[])
    {
    	double  value;

    //	for (value = -328.70; value < -326.01; value += 0.1)  /* Test bottom edge case */
    //	for (value = 326.00; value < 329.01; value += 0.1)    /* Test top edge case */
    	for (value = -2.0; value < 2.01; value += 0.1)        /* Test around zero */
    	{
    		int16_t  converted = double2fixed(value);
    		double   back = fixed2double(converted);

    		printf("value = %f, converted = %d, back = %f\n", value, converted, back);
    	}
    }

    #5485
    Radu
    Keymaster

    Yes, that would work too. Something similar was added in firmware v130 as a fix:

    // an uint16_t stores 16 bits, we use first bit for sign, and following 15 bits for number (0..32767)
    // result is divided by 100 for a real with 2 decimals, max is 327.00
    uint16_t di(double val) {
    	uint16_t res = 0;
    	uint16_t mask = 1<<15;
    	if (val > 327 || val < -327) return res;
    	if (val < 0) {
    		val *= -1000;
    		res = val / 10; // fix double approximation issue
    		res |= mask;
    	} else {
    		val *= 1000;
    		res = val / 10; // fix double approximation issue
    	}
    	return res;
    }


    and


    // an uint16_t stores 16 bits, we use first bit for sign, and following 15 bits for number (0..32767)
    // result is divided by 100 for a real with 2 decimals, max is 327.00
    double id(uint16_t val) {
    	double res = 0;
    	uint16_t mask = 1<<15;
    	// check negative number
    	if (val & mask) {
    		val &= ~mask; // remove sign bit
    		res = val;
    		res = -res;
    	} else {
    		res = val;
    	}
    	res /= 100.0; // restore the 2 decimals
    	return res;
    }


    It’s pretty much the same thing.

    #5486
    Robert
    Participant

    Yes, that would work too.

    And it’s standard. And it’s a lot easier to read.

    It’s pretty much the same thing.

    Yes and no, but mostly no.
    The intermediate 16-bit value function di() produces uses a proprietary bit layout. Besides being non-standard and harder to read code, another consequence is that standard arithmetics – like adding, subtracting, multiplying and dividing – do not work on negative numbers. Perhaps there’s still a good reason to use this proprietary format, but it must be a really good one to justify the disadvantages.

    Standard negative numbers use two’s complement for negative counter parts of positive integers. This is necessary to keep standard arithmetics intact and hence 0 – 1 = -1. With your proprietary format, you have two zeroes: +0 and -0. And standard arithmetics are broken: +0 – 1 = -32767 and -0 – 1 = 32767


    Double:      | Standard conversion (binary)            | Proprietary conversion (binary)| Standard reverse    | Proprietary reverse
    -------------+-----------------------------------------+--------------------------------+---------------------+---------------------
    value = -2.00, double2fixed = -200 (0b1111111100111000), di = 32968 (0b1000000011001000), fixed2double = -2.00, id = -2.00
    value = -1.90, double2fixed = -190 (0b1111111101000010), di = 32958 (0b1000000010111110), fixed2double = -1.90, id = -1.90
    value = -1.80, double2fixed = -179 (0b1111111101001101), di = 32947 (0b1000000010110011), fixed2double = -1.79, id = -1.79
    value = -1.70, double2fixed = -169 (0b1111111101010111), di = 32937 (0b1000000010101001), fixed2double = -1.69, id = -1.69
    value = -1.60, double2fixed = -159 (0b1111111101100001), di = 32927 (0b1000000010011111), fixed2double = -1.59, id = -1.59
    value = -1.50, double2fixed = -149 (0b1111111101101011), di = 32917 (0b1000000010010101), fixed2double = -1.49, id = -1.49
    value = -1.40, double2fixed = -139 (0b1111111101110101), di = 32907 (0b1000000010001011), fixed2double = -1.39, id = -1.39
    value = -1.30, double2fixed = -129 (0b1111111101111111), di = 32897 (0b1000000010000001), fixed2double = -1.29, id = -1.29
    value = -1.20, double2fixed = -119 (0b1111111110001001), di = 32887 (0b1000000001110111), fixed2double = -1.19, id = -1.19
    value = -1.10, double2fixed = -109 (0b1111111110010011), di = 32877 (0b1000000001101101), fixed2double = -1.09, id = -1.09
    value = -1.00, double2fixed =  -99 (0b1111111110011101), di = 32867 (0b1000000001100011), fixed2double = -0.99, id = -0.99
    value = -0.90, double2fixed =  -89 (0b1111111110100111), di = 32857 (0b1000000001011001), fixed2double = -0.89, id = -0.89
    value = -0.80, double2fixed =  -79 (0b1111111110110001), di = 32847 (0b1000000001001111), fixed2double = -0.79, id = -0.79
    value = -0.70, double2fixed =  -69 (0b1111111110111011), di = 32837 (0b1000000001000101), fixed2double = -0.69, id = -0.69
    value = -0.60, double2fixed =  -59 (0b1111111111000101), di = 32827 (0b1000000000111011), fixed2double = -0.59, id = -0.59
    value = -0.50, double2fixed =  -49 (0b1111111111001111), di = 32817 (0b1000000000110001), fixed2double = -0.49, id = -0.49
    value = -0.40, double2fixed =  -39 (0b1111111111011001), di = 32807 (0b1000000000100111), fixed2double = -0.39, id = -0.39
    value = -0.30, double2fixed =  -29 (0b1111111111100011), di = 32797 (0b1000000000011101), fixed2double = -0.29, id = -0.29
    value = -0.20, double2fixed =  -19 (0b1111111111101101), di = 32787 (0b1000000000010011), fixed2double = -0.19, id = -0.19
    value = -0.10, double2fixed =   -9 (0b1111111111110111), di = 32777 (0b1000000000001001), fixed2double = -0.09, id = -0.09
    value =  0.00, double2fixed =    0 (0b0000000000000000), di =     0 (0b0000000000000000), fixed2double =  0.00, id =  0.00
    value =  0.10, double2fixed =   10 (0b0000000000001010), di =    10 (0b0000000000001010), fixed2double =  0.10, id =  0.10
    value =  0.20, double2fixed =   20 (0b0000000000010100), di =    20 (0b0000000000010100), fixed2double =  0.20, id =  0.20
    value =  0.30, double2fixed =   30 (0b0000000000011110), di =    30 (0b0000000000011110), fixed2double =  0.30, id =  0.30
    value =  0.40, double2fixed =   40 (0b0000000000101000), di =    40 (0b0000000000101000), fixed2double =  0.40, id =  0.40
    value =  0.50, double2fixed =   50 (0b0000000000110010), di =    50 (0b0000000000110010), fixed2double =  0.50, id =  0.50
    value =  0.60, double2fixed =   60 (0b0000000000111100), di =    60 (0b0000000000111100), fixed2double =  0.60, id =  0.60
    value =  0.70, double2fixed =   70 (0b0000000001000110), di =    70 (0b0000000001000110), fixed2double =  0.70, id =  0.70
    value =  0.80, double2fixed =   80 (0b0000000001010000), di =    80 (0b0000000001010000), fixed2double =  0.80, id =  0.80
    value =  0.90, double2fixed =   90 (0b0000000001011010), di =    90 (0b0000000001011010), fixed2double =  0.90, id =  0.90
    value =  1.00, double2fixed =  100 (0b0000000001100100), di =   100 (0b0000000001100100), fixed2double =  1.00, id =  1.00
    value =  1.10, double2fixed =  110 (0b0000000001101110), di =   110 (0b0000000001101110), fixed2double =  1.10, id =  1.10
    value =  1.20, double2fixed =  120 (0b0000000001111000), di =   120 (0b0000000001111000), fixed2double =  1.20, id =  1.20
    value =  1.30, double2fixed =  130 (0b0000000010000010), di =   130 (0b0000000010000010), fixed2double =  1.30, id =  1.30
    value =  1.40, double2fixed =  140 (0b0000000010001100), di =   140 (0b0000000010001100), fixed2double =  1.40, id =  1.40
    value =  1.50, double2fixed =  150 (0b0000000010010110), di =   150 (0b0000000010010110), fixed2double =  1.50, id =  1.50
    value =  1.60, double2fixed =  160 (0b0000000010100000), di =   160 (0b0000000010100000), fixed2double =  1.60, id =  1.60
    value =  1.70, double2fixed =  170 (0b0000000010101010), di =   170 (0b0000000010101010), fixed2double =  1.70, id =  1.70
    value =  1.80, double2fixed =  180 (0b0000000010110100), di =   180 (0b0000000010110100), fixed2double =  1.80, id =  1.80
    value =  1.90, double2fixed =  190 (0b0000000010111110), di =   190 (0b0000000010111110), fixed2double =  1.90, id =  1.90
    value =  2.00, double2fixed =  200 (0b0000000011001000), di =   200 (0b0000000011001000), fixed2double =  2.00, id =  2.00
