Hardware version 1 Stevenson Shield for MODEL A3Contact us

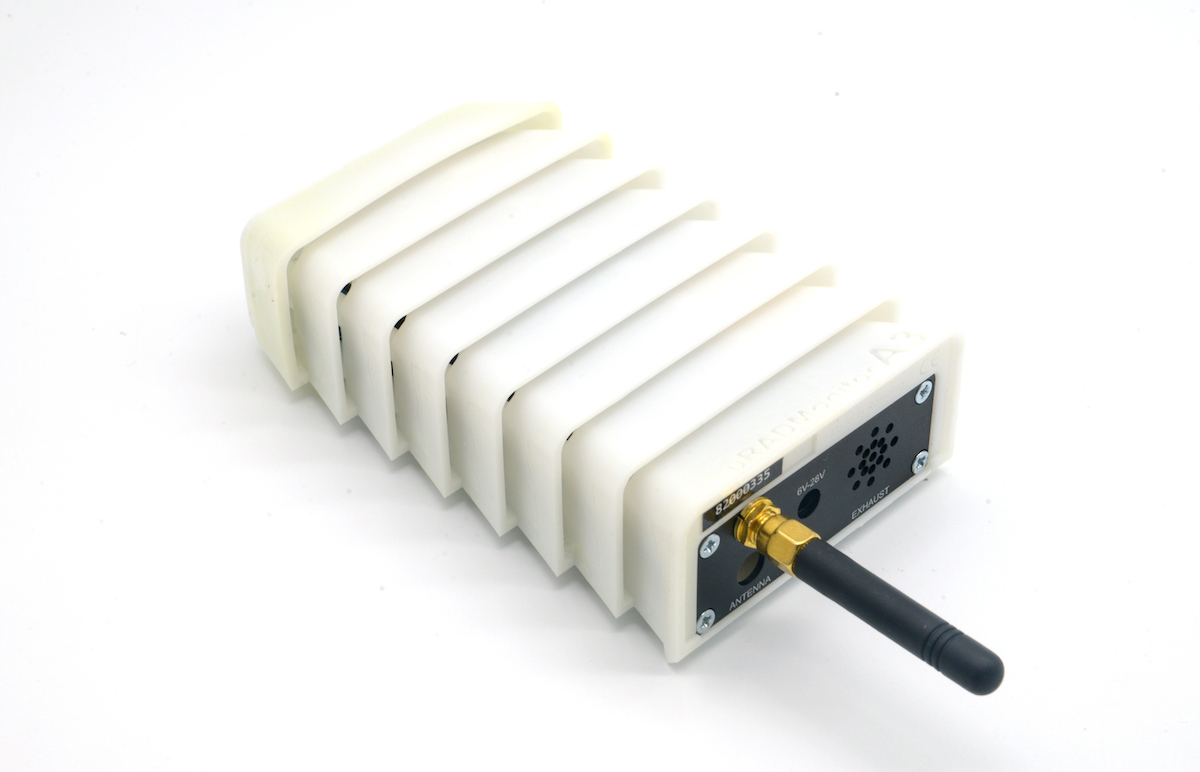

This is a high quality housing for the
uRADMonitor MODEL A3 multi parameter sensor, that allows easy outdoor use. The special design protects the sensitive electronics, while offering direct access to the ambient air, for the best measurements. By default the uRADMonitor A3 comes with an aluminum housing for
the interior that needs additional protection from rain or snow. Get this special Stevenson housing and protect your precious sensor. Stevenson housings can be attached with plastic straps or metal collars.
It comes with:
The Shield, screws, instructions
Availability:
Available, ships right away.
More: Example |
Datasheet |
API |
USB John, USA: "It's an impressive bit of hardware. I especially like the "Made in Romania" - slowly collecting things *not* made in China."
Hardware version 1The easy way to Radiation Sensing! This is a compact radiation sensor board of only 37x12mm, fully digital and easy to integrate in any project. Is a complete Geiger-Muller tube driver module with UART communication to a host microcontroller. The module contains an adjustable, regulated, digital high voltage inverter (default set to 380V, max up to 1000V), a digital pulse counter, a precise - crystal based time counter and a serial communication interface. Add radiation sensing functionality to your project in no time, without having to worry about the complicated Geiger Counter electronics. You just get the CPM value on the serial port in seconds. Ideal for drones, robots and compact portable Radiation Dosimeters. A huge variety of Geiger tubes is supported, of various types and voltages. Checkout the datasheet below for the UART communication protocol details and wiring.
It comes with:
The fully assembled module, instructions. Geiger tube not included.
Availability:
Available, ships right away.
More: Example |
Datasheet |
API |
USB Manuel, Germany: "Please keep that project going, it is a great idea and all people may benefit from it :)"
Hardware version 4 uRADMonitor SMOGGIE-PM (used)Contact us

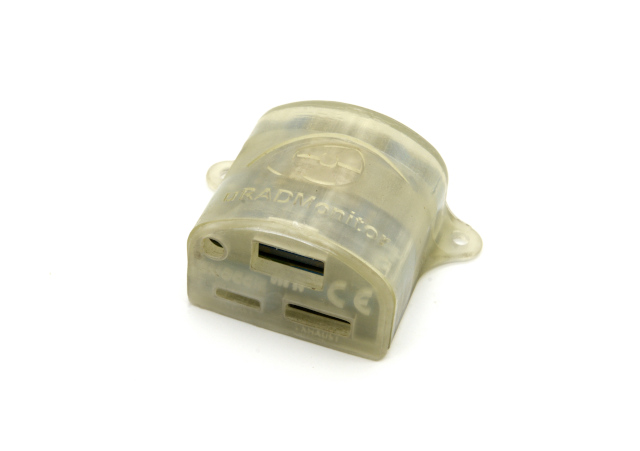

The uRADMonitor SMOGGIE-PM is probably world's smallest automated particulate matter sensor, distinguished as winner of
AIRPARIF Challenge 2021. This lot of sensors is used, not new, taken from an installation site after only 3 months of use. They still have a lot of life left in them, and they come with a huge 50% discount from the original price and six months of warranty. All used units are cleaned, tested and upgraded to the latest firmware. These sensors measure Particulate Matter (PM1, PM2.5, PM10), Temperature and Humidity.
It comes with:
The sensor unit, power supply, instructions
Availability:
20pcs are available, ships right away.
More: Example |
Datasheet |
API |
USB Price: $199 USD 99 USD
50% discount valid until Jul 25th, 2027
Elia, Germany: "hope that your project will be successful and that the network will continue to grow!"
Hardware version 5 uRADMonitor SMOGGIE-HEAT-PM (used)Contact us

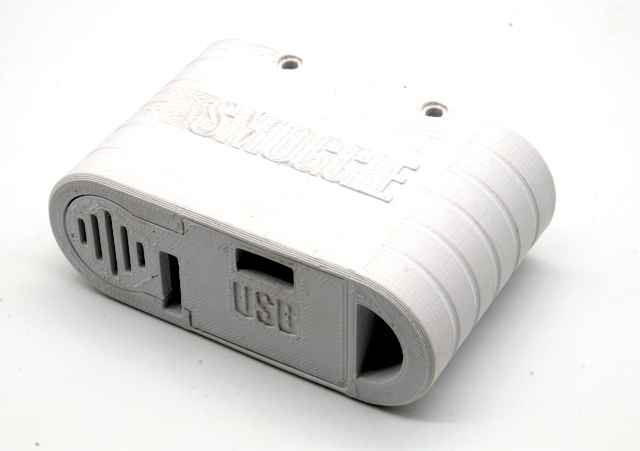

The novel SMOGGIE-HEAT design adds an intake air port heater, that normalises humidity variations and corrects the PM readings in difficult environments where high humidity and low temperatures can produce water particulates that otherwise would result in false positives. See the datasheet for more technical details. This lot of sensors is used, not new, taken from an installation site after only four months of use, part of the
AIRLAB 2023 Challenge where they scored well after being tested in open air conditions. They still have a lot of life left in them, and they come with a huge 50% discount from the original price and six months of warranty. All used units are cleaned, tested and upgraded to the latest firmware. These sensors measure Particulate Matter (PM1, PM2.5, PM10), Temperature and Humidity.
It comes with:
The sensor unit, power supply, instructions
Availability:
4pcs are available, ships right away.
More: Example |
Datasheet |
API |
USB Price: $199 USD 99 USD
50% discount valid until Jul 25th, 2027
Buddy, USA: "I see what you are trying to do with the uRADmonitor and it is exactly what we need to be able to quantify the level of the problem. You can't design a solution for a problem until you know enough about the nature of the problem to be able to define it. Your systems are excellent tools for the task."
